There are a few limitations/restrictions in expressing the effect of performance domestically and internationally.
However, I have no doubt that the consumer will be able to make their own judgement call as long as we clearly outline the treatment method.
RF has been a long standing and reliable source of technology.
- Cartridge used for purpose
Pia Quattro - V (Spot 38x51mm) / Pia Cello - M
Pia Quattro - V (Spot 38x51mm) / Pia Cello - M
Pia Quattro - E / Pia Cello M/S
Pia Quattro - V (Spot 53x68mm) / Pia Cello - M
Pia Quattro - V (Spot 53x68mm) / Pia Cello - M
-
Pia Quattro-V
-
Pia Quattro-E
-
Pia Cello-M
-
Pia Cello-S
QUATTRO 3D skin treatment
There are skin areas that should be applied gentle suction power and strong suction power according to the skin place. Another factor can minimize bruises by controlling pressure. The pressure adjustment unit is 10mbar.
PIAMO's vacuum RF principle is not conducted in a standard vertical descending method, but is done with a left and right side pulse energy irradiation method. It is a technology that forms a three-dimensional shape with vacuum suction, and then irradiates RF pulses by QRR method through electrodes.
One of the most important elements in RF treatment is the temperature control device.
PIAMO maintains a controlled temperature - this is unique design within it’s algorithm.
The controlled temperature completes the procedure without overheating the
skin - conducted with our special mechanical, hardware, and program control technology.
There are skin areas that should be applied gentle suction power and strong suction power according to the skin place. Another factor can minimize bruises by controlling pressure. The pressure adjustment unit is 10mbar.
The Pia Quattro is built for the user to select 4 electrodes or 2 electrodes, depending on how
they intend to use the cartridge. All cartridges and disinfected and ready for use.
The handpiece tip is detachable, and one can maximize results of the treatment
by using the variety of sizes depending on the area being treated.
The Pia Quattro Vacuum Handpiece has a comfortable design that
allows the angle to be adjusted.

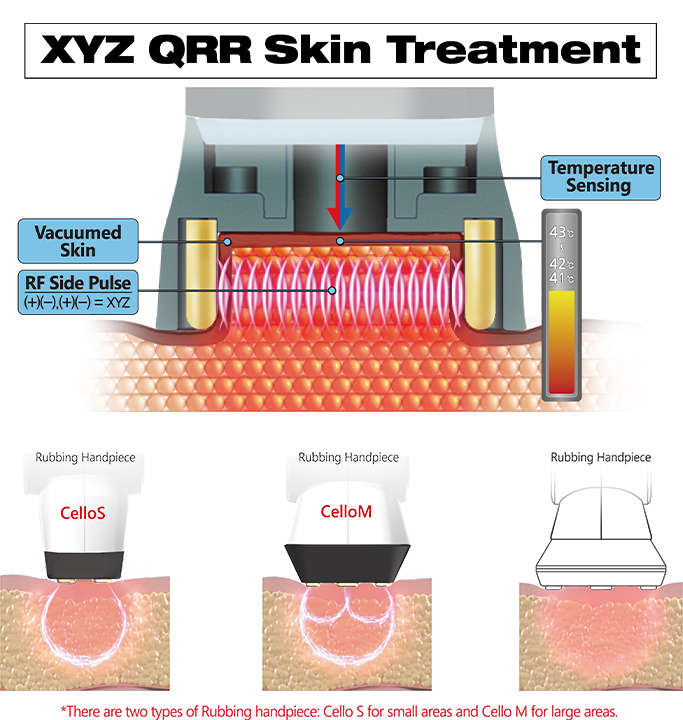

After the skin has been vacuumed/treated into a square shape (+)(-), (-)(+)=> XYZ to the hidden space, the QRR method spreads heat evenly and safely. It is a key factor within our technology that effectively delivers RF pulse energy to the area of treatment. The Dynamic Pressure Drive Vacuum System ensures an even and effective distribution of radio frequency energy delivered to the treatment area.
-
Offers a variety of spots
A variety of spot size options are available based on the skin treatment best suited for each individual. We want to ensure we are providing the best and customizable service for all.
-
Cleaning and disinfection
Quattro electrode cartridges can be separated, washed, and disinfected after each use. This optimizes that each process is clean and safe.
-
Pia Quattro-V
53 X 68 mm
-
Pia Quattro-V
53 X 68 mm
-
Pia Quattro-V
38 X 51 mm
-
Pia Quattro-V
38 X 51 mm
-
Pia Quattro-V
36 X 40 mm
-
Pia Quattro-V
36 X 40 mm
-
Pia Quattro-E
20 X 23 mm
-
Offers a variety of spots
There are various spot sizes to fit your skin Choice allows you to provide better service.
-
Quattro-V
53 X 68 mm
-
Quattro-V
53 X 68 mm
-
Quattro-V
38 X 51 mm
-
Quattro-V
38 X 51 mm
-
Quattro-V
36 X 40 mm
-
Quattro-V
36 X 40 mm
-
Quattro-V
20 X 23 mm
-
-
Cleaning and disinfection
Quattro electrode cartridges can be separated, cleaned, and disinfected after use It is cleaner and safer for the operator.
History of CEO
Mr. Park Won Hee is the Chief Executive Officer (CEO) for PIAMOLIFTING Co.,Ltd. Mr. Park Won Hee is an industry veteran with more than 35 years’ experience in the research, development and production of medical devices.
- 2022.05
Establishment of PIAMOLIFTING Co.,Ltd.
- 2022.04
Resignation of CEO of NSON Corporation
- 2015.08
Establishment of NSON Corporation
- 2012.03 - 2015.03
10th President of Chamber of Commerce in Gyeongsangbuk-do Gyeongsan Office
Awards and
Achievements
-
October
1999Presidential Award for Venture Business
(No. 123274) -
November 2001
Prime Minister's Commendation
(No. 111311) -
November 2005
Dongtap Order of Merit Industrial Packaging
(No. 1811)
Specification
*This specification is subject to change without notice.
-
Frequency
1MHz
-
Pressure control range
Min. 150mbar / Max. 650mbar
-
Output power
Max. 50W
-
Set temperature
Temperature control selection: Up to 43°C (room temperature 25 °C)
-
Quattro handpiece 4 electrode spot size
53X68mm / 38X51mm / 36X40mm
-
Quattro handpiece 2 electrode spot size
20X23mm / 53X68mm / 38X51mm / 36X40mm
-
Quattro handpiece basic spot
4 electrode - 38X51mm (2ea) / 2 electrode - 20X23mm(E) (2ea)
-
Cello handpiece M size
25X25mm
-
Cello handpiece S size
17X19mm
-
Operating voltage
200VAC / 60Hz
-
Device weight
approx, 25kg
-
Device size
approx. 392.5 X 436.5 X 1059.6mm
-
Energy survey method
two way grid method/ XYZ method / XZ method
-
Detachable vacuum handpiece electrode part
Handpiece angle adjustable
Vacuum handpiece OLED LCD temperature display -
options
Quattro handpiece spot
4 electrode - 53X68mm / 36X40mm
2 electrode - 53X68mm / 38X51mm / 36X40mm
Cello L : 41X41mm
Thank you for
visiting PIAMO
If you inquire about the product you are curious about,
we will answer it kindly and quickly.
- Item namea general-purpose electrosurgical instrument
- Purpose of Usean instrument that uses high-frequency current to coagulate tissue
* This product is a 'medical device', and please read and use the 'Precautions for use'
and 'How to use' carefully.
